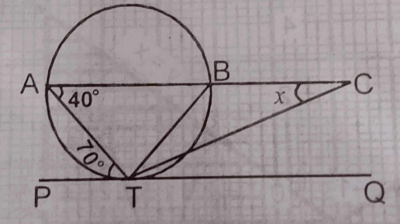

In the diagram above, PQ is a tangent at T to the circle ABT. ABC is a straight line and TC bisects ∠BTO. Find x.
- 20o
- 30o
- 35o
- 40o
-
50o
The correct answer is: E
Explanation
From the figure < TAB = < BTQ = 40° (alternate segment)
\(\therefore\)< ATB = 180° - (70° + 40°) = 70° (angle on a straight line)
< BTC = \(\frac{40°}{2} = \frac{< BTQ}{2}\)
\(\therefore < BTQ = 40°\)
x° = 180° - (40° + 70° + 20°)
= 50°
