22
x 6.20 6.85 7.50
y 3.90 5.20 6.50

The points on a linear graph are as shown in the table. Find the gradient (slope) of the line.

  • A. 2\(\frac{1}{2}\)
  • B. 2
  • C. 1
  • D. \(\frac{1}{2}\)
View Answer & Discuss WAEC 2020
23

In the diagram, PQ is a straight line. If m = \(\frac{1}{2}\) (x + y + z), find value of m.

  • A. 45\(^o\)
  • B. 60\(^o\)
  • C. 90\(^o\)
  • D. 100\(^o\)
View Answer & Discuss WAEC 2020
24

A box contains 12 identical balls of which 5 are red, 4 blue, and the rest are green. If two balls are selected at random one after the other with replacement, what is the probability that both are red?

  • A. \(\frac{25}{144}\)
  • B. \(\frac{5}{33}\)
  • C. \(\frac{5}{6}\)
  • D. \(\frac{103}{132}\)
View Answer & Discuss WAEC 2020
25

A box contains 12 identical balls of which 5 are red, 4 blue, and the rest are green.  If a ball is selected at random from the box, what is the probability that it is green?

  • A. \(\frac{3}{4}\)
  • B. \(\frac{1}{2}\)
  • C. \(\frac{1}{3}\)
  • D. \(\frac{1}{4}\)
View Answer & Discuss WAEC 2020
26

The diameter of a sphere is 12 cm. Calculate, correct of the nearest cm\(^3\), the volume of the sphere, [Take \(\pi = \frac{22}{7}\)]

  • A. 903 cm\(^3\)
  • B. 904 cm\(^3\)
  • C. 905 cm\(^3\)
  • D. 906 cm\(^3\)
View Answer & Discuss WAEC 2020
27

Find the sum of the interior angle of a pentagon.

  • A. 340\(^o\)
  • B. 350\(^o\)
  • C. 540\(^o\)
  • D. 550\(^o\)
View Answer & Discuss WAEC 2020
28

The mean of the numbers 15, 21, 17, 26, 18, and 29 is 21. Calculate the standard deviation

  • A. 9
  • B. 6
  • C. 5
  • D. 0
View Answer & Discuss WAEC 2020
29

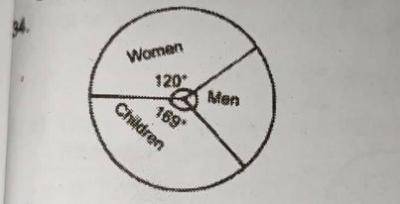

The pie chart shows the population of men, women, and children in a city. If the population of the city is 1,800,000, how many men are in the city?

  • A. 845,000
  • B. 600,000
  • C. 355,000
  • D. 250,000
View Answer & Discuss WAEC 2020
30

In the diagram, PQR is a circle with center O. If โˆ OPQ = 48ยฐ, find the value of M.



  • A. 96\(^o\)
  • B. 90\(^o\)
  • C. 68\(^o\)
  • D. 42\(^o\)
View Answer & Discuss WAEC 2020
31

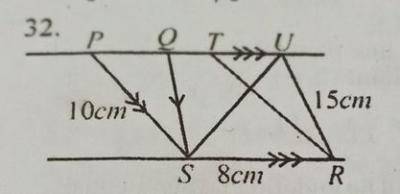

In the diagram, \(\overline{PU}\)/\(\overline{SR}\),  \(\overline{PS}\)/\(\overline{TR}\),  \(\overline{QS}\)/\(\overline{UR}\),  \(\overline{UR}\) = 15cm, \(\overline{SR}\) = 8 cm, \(\overline{PS}\) = 10 cm and area of โ–ณSUR = 24 cm\(^2\). Calculate the area of PTRS.

  • A. 40 cm\(^2\)
  • B. 48 cm\(^2\)
  • C. 80 cm\(^2\)
  • D. 120 cm\(^2\)
View Answer & Discuss WAEC 2020
32

The length of an arc of a circle of radius 3.5 cm is  1\(\frac{19}{36}\) cm. Calculate, correct to the nearest degree , the angle substended by the centre of the circle. [Take \(\pi = \frac{22}{7}\)]

  • A. 55\(^o\)
  • B. 36\(^o\)
  • C. 25\(^o\)
  • D. 22\(^o\)
View Answer & Discuss WAEC 2020
33

In the diagram, \(\overline{MN}\)//\(\overline{PQ}\), < MNP = 2x, and < NPQ = (3x – 50)ยฐ. Find the value of < NPQ

  • A. 200\(^o\)
  • B. 100\(^o\)
  • C. 120\(^o\)
  • D. 90\(^o\)
View Answer & Discuss WAEC 2020
34

Each interior angle of a regular polygon is 168\(^o\). Find the number of sides of the polygon

  • A. 30
  • B. 36
  • C. 24
  • D. 18
View Answer & Discuss WAEC 2020
35

The dimension of a rectangular base of a right pyramid is 9 cm by 5cm. If the volume of the pyramid is 105 cm\(^3\), how high is the pyramid?

  • A. 10cm
  • B. 6cm
  • C. 8cm
  • D. 7cm
View Answer & Discuss WAEC 2020
36

If tan y is positive and sin y is negative, in which quadrant would y lie?

  • A. First and third only
  • B. First and second only
  • C. Third only
  • D. Second only
View Answer & Discuss WAEC 2020
37

Fati buys milk at โ‚ฆx per tin sells each at a profit of โ‚ฆy. If she sells 10 tins of milk, how much does she receives from the sales?

  • A. โ‚ฆ(xy + 10)
  • B. โ‚ฆ(x + 10y)
  • C. โ‚ฆ(10x + y)
  • D. โ‚ฆ10(x + y)
View Answer & Discuss WAEC 2020
38

A fence 2.4 m tall, is 10m away from a tree of height 16m. Calculate the angle of elevation of the top of the tree from the top of the fence.

  • A. 76.11\(^o\)
  • B. 53.67\(^o\)
  • C. 52.40\(^o\)
  • D. 51.32\(^o\)
View Answer & Discuss WAEC 2020
39

In the diagram, XYZ is an equilateral triangle of side 6cm and Y is the midpoint of \(\overline{XY}\). Find tan (< XZT)

  • A. \(\frac{1}{\sqrt{3}}\)
  • B. \(\frac{\sqrt{3}}{2}\)
  • C. \(\sqrt{3}\)
  • D. \(\frac{1}{2}\)
View Answer & Discuss WAEC 2020
40

Simplify; \(\frac{a}{b} – \frac{b}{a} – \frac{c}{b}\)

  • A. \(\frac{a - b + c}{ab}\)
  • B. \(\frac{ab - bc - ac}{ab}\)
  • C. \(\frac{a^2 - b^2 + ac}{ab}\)
  • D. \(\frac{a^2 - b^2 - ac}{ab}\)
View Answer & Discuss WAEC 2020
41

A man is five times as old as his son. In four years’ time, the product of their ages would be 340. If the son’s age is y, express the product of their ages in terms of y.

  • A. 5y\(^2 - 16y - 380 = 0\)
  • B. 5y\(^2 - 24y - 380 = 0\)
  • C. 5y\(^2 - 16y - 330 = 0\)
  • D. 5y\(^2 + 24y - 324 = 0\)
View Answer & Discuss WAEC 2020
42

The expression \(\frac{5x + 3}{6x (x + 1)}\) will be undefined when x equals

  • A. {0, 1}
  • B. {0, -1}
  • C. {-3, -11}
  • D. {-3, 0}
View Answer & Discuss WAEC 2020
