In the circuit above, the ammeter reads a current of 5.0 A when R =…

Physics JAMB 1999

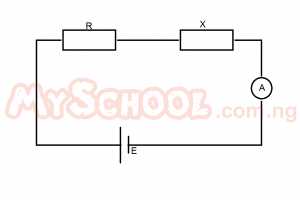

In the circuit above, the ammeter reads a current of 5.0 A when R = 8Ω and reads 7.0A when R = 5Ω. The value of the unknown resistance X is

  • 10.0Ω
  • 7.5Ω
  • 5.0Ω
  • 2.5Ω checkmark

The correct answer is: D

Explanation

From Ohms Law, E = I(R +X)
=> E = I1(R1 + X)
again, E = I2(R2 + X)
=> I1(R1 + X) = I2(R2 + X)
∴ 5(8 + X) = 7(5 + X)
40 + 5X = 35 + 7X
7X - 5X = 40 - 35
2X = 5
X = 5/2
= 2.5Ω
