Physics JAMB, WAEC, NECO AND NABTEB Official Past Questions

43

A body of mass 100g moving with a velocity of 10ms-1 collides with a wall. If after collision it moves with a velocity of 2.0ms−1 in the opposite direction, calculate the change in momentum.

  • A. 0.8Ns
  • B. 1.2Ns
  • C. 12.0Ns
  • D. 80.0Ns
View Answer & Discuss JAMB 2018
44

The force between the molecules of a liquid in contact with that of a solid is?

  • A. Adhesive
  • B. Cohesive
  • C. Magnetic
  • D. Repulsive
View Answer & Discuss JAMB 2018
45

A ball of mass 800g moving horizontally with a speed of 5m/s hits a vertical wall and rebounds with the same speed. The impulse experienced by the ball is?

  • A. 0kgm
  • B. 2kgm/s
  • C. 4kgm/s
  • D. 8kgm/s
View Answer & Discuss JAMB 2018
46

When an atom loses or gain a charge it becomes

  • A. An electron
  • B. An ion
  • C. A neutron
  • D. A proton
View Answer & Discuss JAMB 2018
47

A pulley system has three pulleys in the fixed block and two in the movable block and if the pulley has an efficiency of 72%, the mechanical advantage of the system is?

  • A. 36.0
  • B. 7.2
  • C. 5.0
  • D. 3.6
View Answer & Discuss JAMB 2018
48

The inner diameter of a small test tube can be measured accurately using a

  • A. Micrometres screw gauge
  • B. Pair of dividers
  • C. Metre rule
  • D. Pair of vernier calliper
View Answer & Discuss JAMB 2018
49

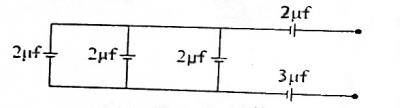

Calculate the effective capacitance of the circuit in the diagram given

  • A. 4μf
  • B. 3μf
  • C. 2μf
  • D. 1μf
View Answer & Discuss JAMB 2018
50

What effort will a machine of efficiency 90% apply to a load of 180N if its efforts arm is twice as long as its load arm?

  • A. 100N
  • B. 90N
  • C. 80N
  • D. 120N
View Answer & Discuss JAMB 2018
51

An object moves in a circular path of radius 0.5m with a speed of 1ms\(^{-1}\). What is its angular velocity?

  • A. 8rads\(^{-1}\)
  • B. 4rads\(^{-1}\)
  • C. 1rads\(^{-1}\)
  • D. 2rads\(^{-1}\)
View Answer & Discuss JAMB 2018
52

In homes, electrical appliances and lamps are connected in parallel because

  • A. less current will be used
  • B. less voltage will be used
  • C. parallel connection does not heat up the wires
  • D. series connection uses high voltage
View Answer & Discuss JAMB 2018
53

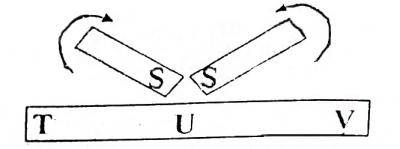

In the diagram shown, If the south-poles of two magnets stroke a steel bar, the polarities at T and V will respectively be

  • A. north and south
  • B. south and south
  • C. north and north
  • D. south and north
View Answer & Discuss JAMB 2018
54

Musical instruments playing the same note can be distinguished from one another owing to the difference in their

  • A. quality
  • B. pitch
  • C. intensity
  • D. loudness
View Answer & Discuss JAMB 2018
55

Convex mirrors are used as driving mirrors because images formed are

  • A. erect, Virtual and diminished
  • B. erect, real and diminished
  • C. erect, virtual and magnified
  • D. inverted, virtual and diminished
View Answer & Discuss JAMB 2018
56

The differences observed in solids, liquids and gases may be accounted for by

  • A. their relative masses
  • B. their melting points
  • C. the spacing and forces acting between the molecules
  • D. the different molecules in each of them
View Answer & Discuss JAMB 2018
57

The process whereby a liquid turns spontaneously into vapour is called

  • A. regelation
  • B. evaporation
  • C. boiling
  • D. sublimation
View Answer & Discuss JAMB 2018
58

Electrical appliances in homes are normally earthed so that

  • A. a person touching the appliances is safe from electric shock
  • B. both the a.c. and d.c. sources can be used
  • C. the appliances are maintained at a higher pd than the earth
  • D. the appliances are maintained at a lower pd than the earth
View Answer & Discuss JAMB 2018
59

A positively charged rod X is brought near an uncharged metal sphere Y and is then touched by a finger with X still in place. When the finger is removed, the result is that Y has

  • A. no charge and a zero potential
  • B. a positive charge and a zero potential
  • C. a negative charge and a positive potential
  • D. a negative charge and a negative potential
View Answer & Discuss JAMB 2018
60

The time rate of loss of heat by a body is proportional to the

  • A. temperature of its surroundings
  • B. temperature of the body
  • C. difference in temperature between the body and its surroundings
  • D. ratio of the temperature of the body to that of its surroundings
View Answer & Discuss JAMB 2018
61

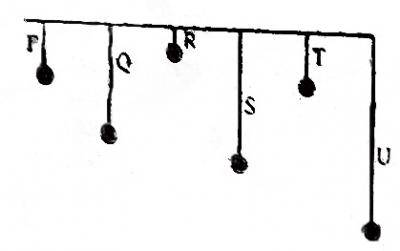

In the diagram shown, which of the simple pendulum will resonate with P when set into oscillation?

  • A. U
  • B. T
  • C. R and T
  • D. Q and R
View Answer & Discuss JAMB 2018
62

If the fraction of the atoms of a radioactive material left after 120years is \(\frac{1}{64}\), what is the half-life of the material?  \(\frac{1}{64}\)

  • A. 20 years
  • B. 10 years
  • C. 2 years
  • D. 24 years
View Answer & Discuss JAMB 2018
63

In a series R-L-C circuit at resonance, the voltages across the resistor and the inductor are 30V and 40V respectively. What is the voltage across the capacitor?

  • A. 30V
  • B. 70V
  • C. 50V
  • D. 40V
View Answer & Discuss JAMB 2018
