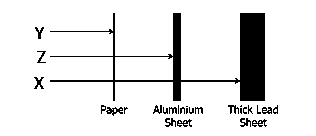

The diagram above illustrates the penetrating power of some types of radiation. X, Y and Z are likely
- X = α-particle; Y = γ-ray; Z = β-particle
- X = α-particle; Y = β-particle; Z = γ-ray
-
X = γ-ray; Y = α-particle; Z = β-particle
- X = β-particle; Y = γ-ray; Z = α-particle
The correct answer is: C
Explanation
The penetrating power of alpha rays, beta rays, and gamma rays varies greatly. Alpha particles can be blocked by a few pieces of paper. Beta particles pass through paper but are stopped by aluminum foil. Gamma rays are the most difficult to stop and require concrete, lead, or other heavy shielding to block them.
Therefore, X = γ-ray; Y = α-particle; Z = β-particle
There is an explanation video available .
