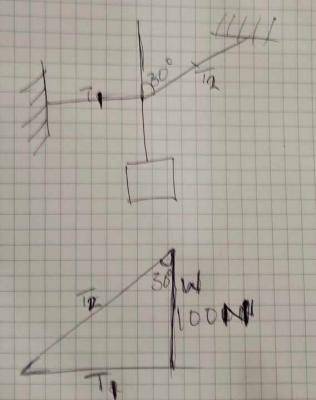

The diagram above illustrates three forces T\(_1\), T\(_2\) and 100N in equilibrium. Determine the magnitude of T\(_1\).
-
100 tan 30o
- \(\frac{100}{\cos 30^o}\)
- 200 sin 301
- \(\frac{200}{tan 30^o}\)
The correct answer is: A
Explanation
Tan30º = \(\frac{T_1}{100}\)
T\(_1\) = 100 Tan30º
